Products - Dosing Pumps

Motor Driven Pumps

Overview

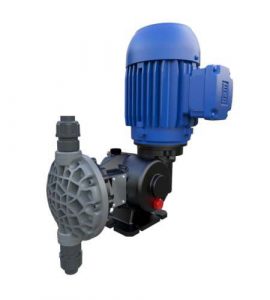

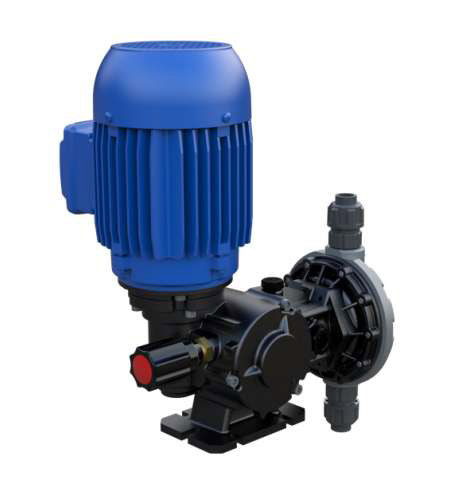

Seko MS1 pumps have a spring return mechanism in a single aluminum housing. Each model can be adjusted to between 0-100% of the total flow rate. This can be done manually or automatically by using the AKTUA actuator which operates with a 4-20 mA signal. In addition, Spring MS1 pumps can be supplied with a single or three-phase electric motor with IP55 protection.

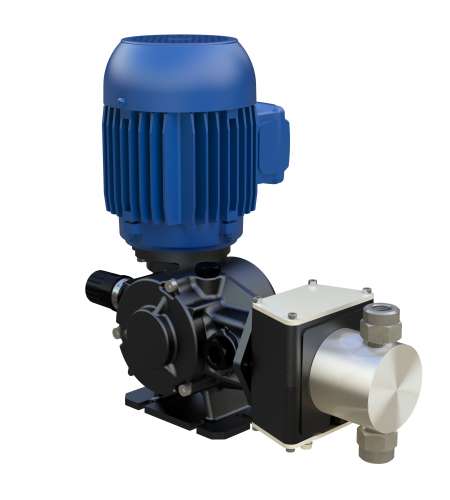

Seko PS pumps comprising plunger piston pumps, the Spring range allows users to choose from multiple combinations of pump head and motor power for a pump perfectly suited to their application.

Specifications

  • Flow rate: up to 1,200 l/h
  • Pressure: up to 20 bar (290 psi)
  • Stroke rate: up to 116 strokes/minute
  • Wetted part materials: 316L stainless steel, polypropylene, PVC, PTFE and PVDF
  • Power output: 0.18 – 0.75 kW
  • Power supply: 230/400V 50 Hz
  • Ingress protection: IP55
